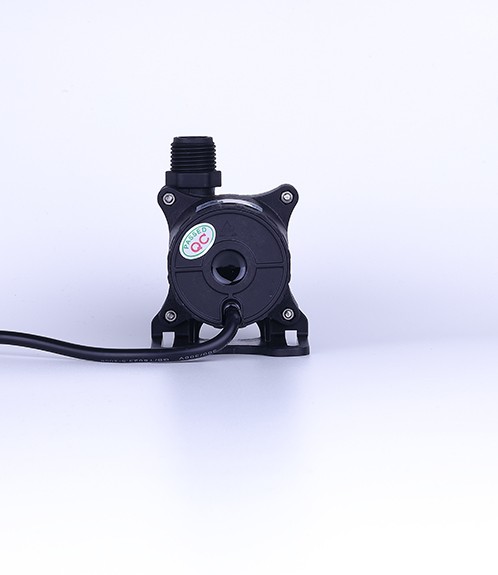

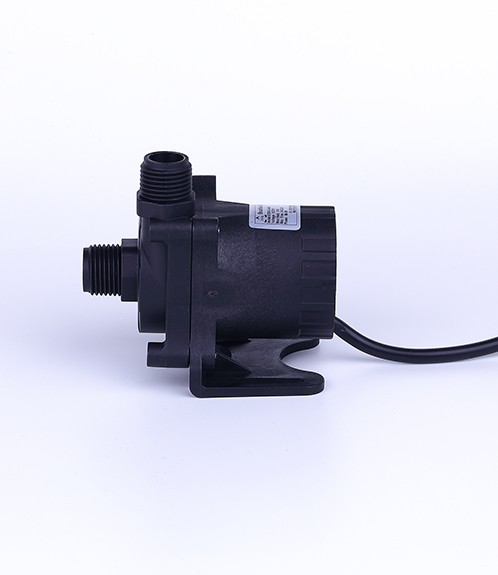

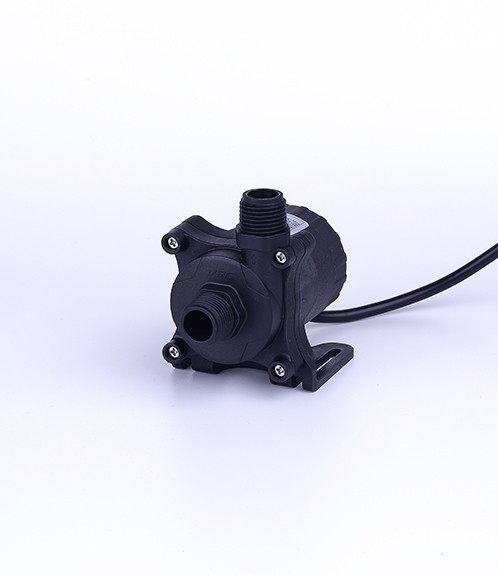

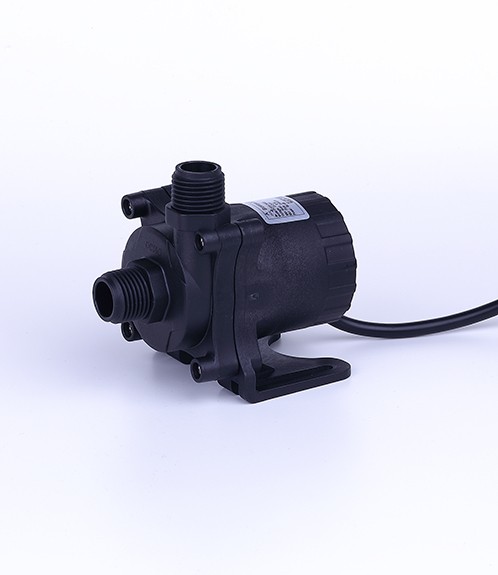

DC50G Floating Solar Powered Pond Garden Water Pump

SpecificationsNO.ItemSpecs1Dimension and weight99.4mmx92.5mmx69.6mm;480g2External diameter of outlet1/2" thread(M20)3External diameter of inlet1/2" thread(M20)4Driving mechanismBrush-less, m

  • Model No: DC50G

图片关键词

Specifications

NO.ItemSpecs
1Dimension and weight99.4mmx92.5mmx69.6mm;480g
2External diameter of outlet1/2" thread(M20)
3External diameter of inlet1/2" thread(M20)
4Driving mechanismBrush-less, magnetic isolated design
5Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)
6Condition of useCan continuously work, submersible or land use (not self-priming)
7Suitable mediumWater, oil, or normal acid/ alkaline liquids
(Pre-test needed for special liquid)
8Max working temperature60ºC(for T sub-series) or 100ºC(for S/A sub-series)
9Power consumption2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)
10Rated voltage12Vdc or 24Vdc
11Working voltage range5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
12Max load current2.0A (for T sub-series) or 4.5A(for S/A sub-series)

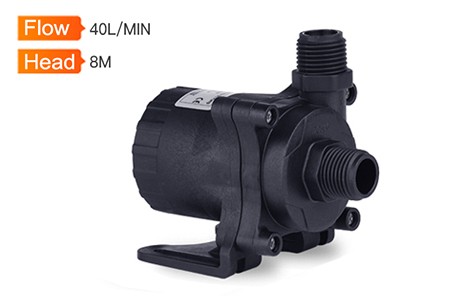

13Max horizontal flow rate32L/MIN(for T sub-series) or 40L/MIN(for S/A sub-series)
14Max static lift4M(for T sub-series) or 8M(for S/A sub-series)
15Noise class<40dB
16Waterproof classIP68(suitable for submersible installation)
17Life span>30,000hrsIP68(suitable for submersible installation)
18Power supplySuitable solar panel, batteries, adapter or other power source
19Protection functionDry-run protection, lock protection(customized function)
20Power regulation functionSpeed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)
22Feature
  • small size with high efficiency,maintenance-free

  • Use ceramics shaft and carbon fiber sleeve

  • Completely water proof (IP68)

  • Brush-less dc control without pollution, long life span

  • OEM and ODM service accept

  • Offer Pump related control system design

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No.VoltageMax load currentMax static liftMax flow ratePower consumption

V(dc)AML/Hw
DC50G-1230T122.03.0168024
DC50G-1230S
DC50G-1230A
 DC50G-1260S124.56.0210054
 DC50G-1260A
DC50G-2440T242.04.0192048
DC50G-2440S
DC50G-2440A
DC50G-2480S243.608.0240086.4
DC50G-2480A
    NOTE
  •  Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.

  •  When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

  •  The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.

  •  The max flow rate means flow rate with no lifting height(according to the curve bellow)


Difference between 2phase & 3phase brushless DC pump

2phase
(T sub-series)
 Hall sensor driving, circuit board should be placed inside pump body

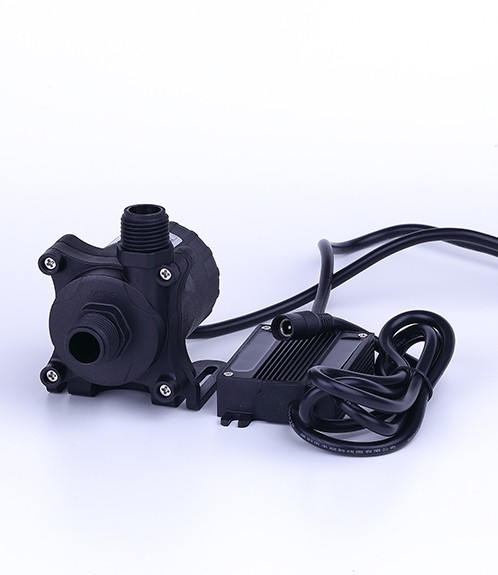

   3phase
(S/A sub-series)
  • NOTE that 3phase dc is completely different with 3phase AC; 3phase DC means 3 pairs of magnetic polarity & sensor-less, power supply  the same with common DC pump

  • Intelligent program-driving, sensor-less, circuit outside of pump body (main factor that pump can be high-temperature resistant)

  • Speed adjustable by PWM, 0~5V signal or potentiometer(optional)

  • Lock protection,reverse-connected protection, over-vol.&over-current protection,

  • Soft start, no current impact, can be contact directly with solar panel
