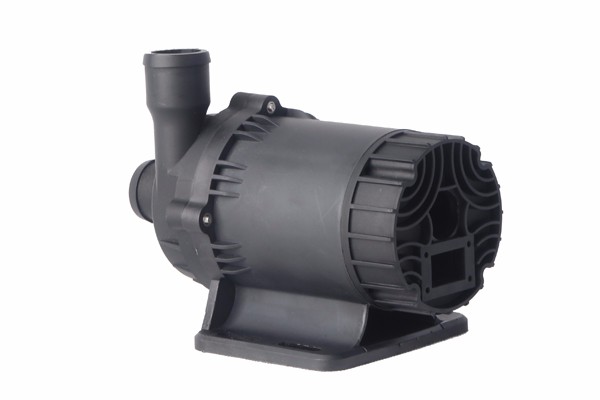

DC60B-Sink dishwasher water pump spray pump

一.Product Features1Product nameZKSJ DC60B DC Pump2Model No.DC60B DC pump3Weight:0.89kg4Life span:≥30000h5Waterproof Grade:IP686Color:Black7EPL:Meet ROHS requirements8Material of pump shell:P

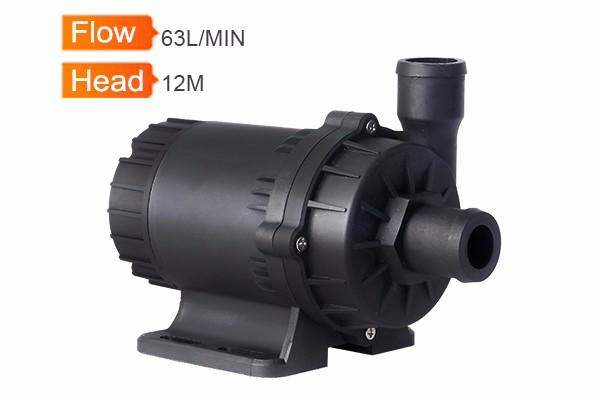

  • Max Lift:: 12m
  • Flow: 3800L/H
  • Dimension: 152*88*110mm
  • Media: Oil, water, and other liquids
  • Model No: DC60B-1
  • Power: 120W
  • Inlet Dimension:: 25mm
  • Outlet Dimension:: 25mm

.Product Features

1

Product name

ZKSJ DC60B DC Pump


2

Model No.

DC60B DC pump

3

Weight

0.89kg

4

Life span

30000h

5

Waterproof Grade

IP68

6

Color

Black

7

EPL

Meet ROHS requirements

8

Material of pump shell

PPS+30%GF

9

Noise class

≤40dB

10

Leakproofness

≥1MPa

11

Insulation grade

H Grade180°

12

Working principle

Centrifugal pump

13

Application

  Cooling circulation system, supercharging system

二.Range of application

1

Ambient Temperature

3-phase controller inside for non-submersible/controller outside for submersible

2

Liquid Type

Oil, water, and other liquids

3

Liquid Temperature

-30°—100°

3-phase controller inside for non-submersible /controller outside for submersible

4

Power

DC Power Supply

三.Electrical parameters (only for reference)

1

Product model

DC60B-12100PWM

DC60B-12100VR

DC60B-12100S

DC60B-24120PWM

DC60B-24120VR

DC60B-24120S

DC60B-36120PWM

DC60B-36120VR

DC60B-36120S

DC60B-12100PWM

DC60B-12100VR

DC60B-12100S

PWM:PWM speed(50-800HZ/ 5V)

VR:0~5V/Potentiometer speed

S:constant rotational speed

2

Rated Voltage

12V DC

24V DC

36V DC

12V DC


3

operating voltage range

5-12V

5-28V

5-40V

5-12V

Within this range, the pump can work normally

4

Rated current

5.4A(6.6A)

4.5A(5A)

3A(3.3A)

5.4A(6.6A)

Closed outlet current (open pumping current)

5

Power

65W(80W)

108W(120W)

108W(120W)

65W(80W)

Closed outlet power (open pumping power)

6

Max. Flow

3200L/H

3800L/H

3800L/H

3200L/H

The flow of water when there is no takeover

7

Max.Head

10M

12M

12M

10M

Static head

8

Minimum input power supply

12V-7A

24V-6A

36V-4A

12V-7A


.Additional function instructions

1

K-jam protection

When the impurity enters the rotor chamber, the rotor stops running, and the pump stops running as well.

2

Dry run protection

The pump will stop working when no enough water inside pump.

3

Overloading protection

When the voltage is unstable or exceeds the rated power, the pump will stop working.

4

Power reverse connection

Wrong connection of the power supply(positive and negative), the water pump will stop running, and then re-connected, can work normally.


Built-in pump driver

 dc pump

Suitable for non - diving installation, medium below 60 degrees


The pump driver is external

dc pump

Submersible installation, high temperature resistance

五.Installation Drawing

dc pump

Notice: The pump is not self-priming pump. When install, please make sure there is enough water in pump gland. Meanwhile, the pump must be installed below the liquid level in the tank.

六.Head flow curve

dc pump

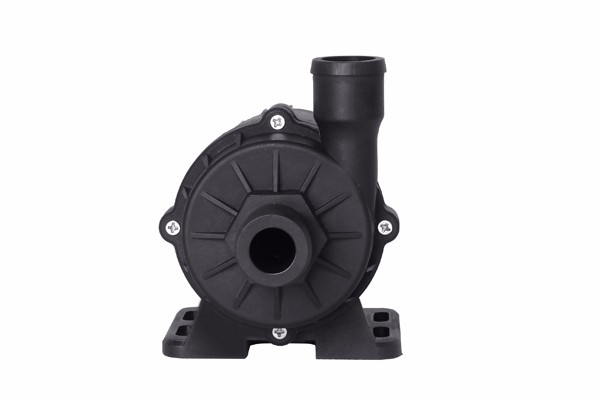

七.Dimension and appearance



BOM

Bill of Material

No.

Description

Specification

Qty

Material

No.

Description

Specification

Qty

Material

1

DC60B Cover

PPS

1

PPS

13





2

O-ring

50*55*2.5

1

EPDM

14





3

DC60 Body

PPS

1

PPS

15





4

60 Stator

50*27*25*6P*H25

1

Iron Core



16





5

60 3-phase insulated sleeves

PA66+30%

1

Nylon

17





6

DC60 Back Cover

PPS

1

PPS

18





7

60 Ferrite closed impeller

 PA66+30%

1

Nylon

19





8

Ceramic shaft sleeve

H3.5*8*3.7

1

Zirconia



20





9

60 Ceramic shaft

40*3.7

1

Zirconia



21





10

Graphit sleeve

H26.8*7*3.72

1

Graphit

22





11

 Ferrite magnet

28*24*12.8

4

Magnet

23





12





24





dc pump

九.Failure and maintenance

Failure and maintenance


Failure

Reason

Solutions

1

Large current and small flow

Impurities in the rotor

injection water from the outlet to clean the inside



2

stop working and current is unstable

 The rotor is stuck

Clean foreign matter makes rotor stuck

Stop working and short circuit

Control board is damaged

Change a new pump

Stop working and no current

Check the power cord

Reconnect the power



3



Big noise

Impurities in the pump

Clean the impurities

Air in the pump and can’t get out

Put the outlet upwards, makes water no air

no water in the pump,  dry run

Make sure enough water inside



十.Notice



Notice

1.  It is strictly forbidden to use liquids with impurities greater than 0.35mm and ceramic or magnetic particles.



2.  If it is not used for long time,make sure water inside pump before power on.



3.  Do not let pump dry run



4.  If not used for long time, please make sure cord connection correctly.



5. If use in low temperature environment, please make sure the water won’t be frozen or thick.



6. Please check if there is water on connection plug, and clean it before use.
