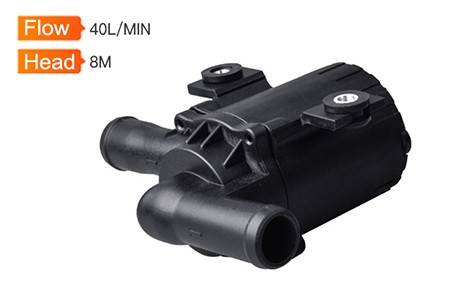

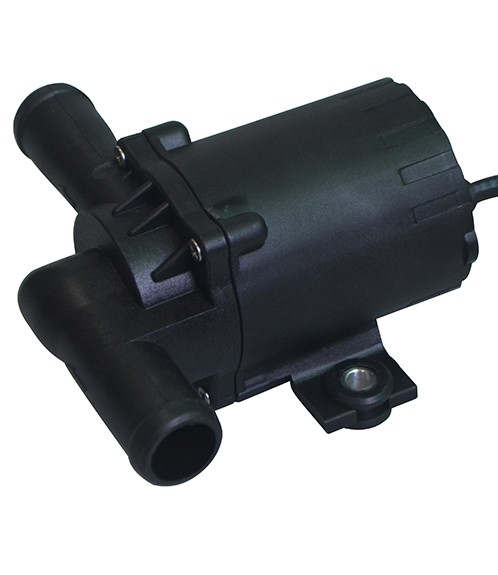

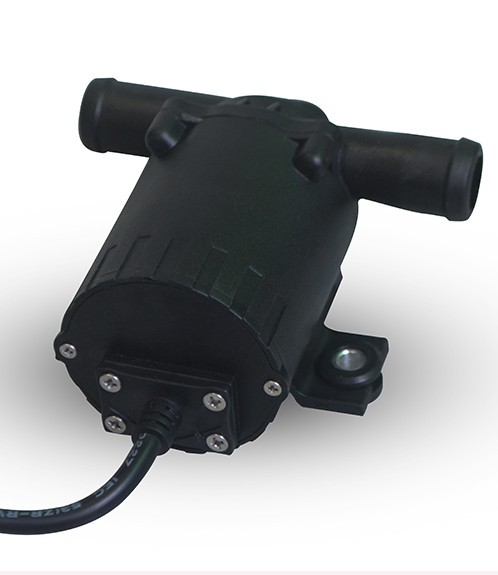

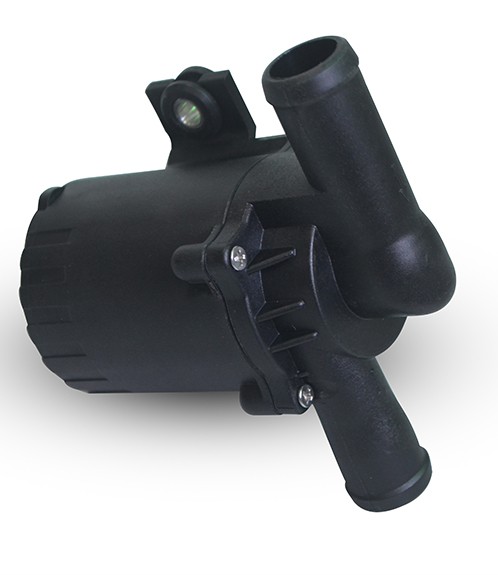

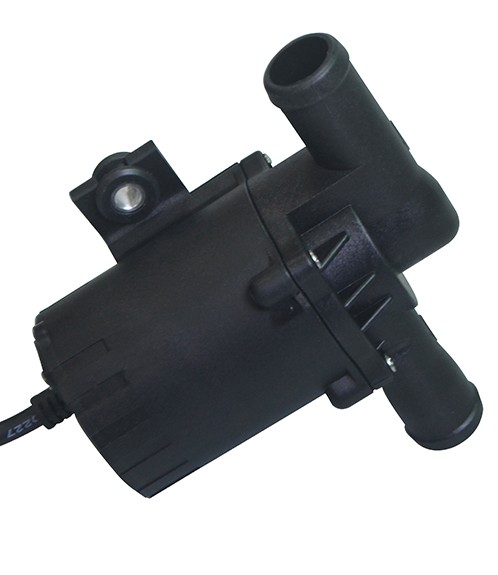

DC40D DC 12V 24V 5m Hot Water Circulation Pump Solar Water Pump Brushless Motor

SpecificationsNO.ItemSpecs1Dimension and weight90mm*60.8mm*41.5mm;220g2Installation dimension90mm*64mm*56mm;3External diameter of outlet10mm4External diameter of inlet10mm5Driving mechanismBrush-less,

  • Model No: DC40D

图片关键词

Specifications

NO.ItemSpecs
1Dimension and weight90mm*60.8mm*41.5mm;220g
2Installation dimension90mm*64mm*56mm;
3External diameter of outlet10mm
4External diameter of inlet10mm
5Driving mechanismBrush-less, magnetic isolated design
6Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)
7Condition of useCan continuously work, submersible or land use (not self-priming)
8Suitable mediumWater, oil, or normal acid/ alkaline liquids
(Pre-test needed for special liquid)
9Max working temperature60ºC
10Power consumption2.5W~28.8W(can be customized within this range)
11Rated voltage12Vdc or 24Vdc
12Working voltage range5Vdc ~ 12Vdc (Max 14V )or 5Vdc ~ 24Vdc(Max 26V)
13Max load current1.2A
14Max horizontal flow rate10L/MIN
15Max static lift8M
16Noise class<40dB
17Waterproof classIP68(suitable for submersible installation)
18Life span> 30,000hrs
19Power supplySuitable for solar panel, batteries, adapter or other power source
20Protection functiondry-run protection, stuck protection(customized function)
21Power regulation functionSpeed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)
22Feature
  • small size with high efficiency,maintenance-free

  • Use ceramics shaft and carbon fiber sleeve

  • Completely water proof (IP68)

  • Brush-less dc control without pollution, long life span

  • OEM and ODM service accept

  • Offer Pump related control system design

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No.VoltageMax load currentMax static liftMax flow ratePower consumption
V(dc)AM L/Hw
DC40D-1250121.15.045013.2
DC40D-2480241.18.055026.4
NOTE
  • Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.

  • When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

  • The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.

  • The max flow rate means flow rate with no lifting height(according to the curve bellow)
