DC40F DC General Hydroponics Dual Diaphragm Air Pump

SpecificationsNO.ItemSpecs1Dimension and weight88.5mmx64.8mmx43.8mm; 230g2Installation dimension88.5mmx68mmx56mm;3External diameter of outlet1/2'' thread(M20mm)4External diameter of inlet1/2&#

  • Model No: DC40F

图片关键词

Specifications

NO.ItemSpecs
1Dimension and weight88.5mmx64.8mmx43.8mm; 230g
2Installation dimension88.5mmx68mmx56mm;
3External diameter of outlet1/2'' thread(M20mm)
4External diameter of inlet1/2'' thread(M20mm)
5Driving mechanismBrush-less, magnetic isolated design
6Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)
7Condition of useCan continuously work, submersible or land use (not self-priming)
8Suitable mediumWater, oil, or normal acid/ alkaline liquids
(Pre-test needed for special liquid)
9Max working temperature60ºC
10Power consumption2.5W~28.8W
11Rated voltage12Vdc or 24Vdc
12Working voltage range5Vdc ~ 12Vdc(Max 14v) or 5Vdc ~ 24Vdc(Max 26v)
13Max load current1.2A

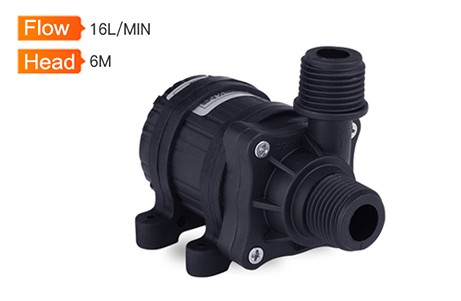

14Max horizontal flow rate16L/MIN
15Max static lift6M
16Noise class<40dB
17Waterproof classIP68(suitable for submersible installation)
18Life spanCan be more than 30,000hrs
19Power supplySuitable for solar panel, batteries, adapter or other power source
20Protection functiondry-run protection, stuck protection(customized function)
21Power regulation functionSpeed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)
22Feature
  • small size with high efficiency,maintenance-free

  • Use ceramics shaft and carbon fiber sleeve

  • Completely water proof (IP68)

  • Brush-less dc control without pollution, long life span

  • OEM and ODM service accept

  • Offer Pump related control system design

Electrical parameters (only for reference,parameters can be customized for specific requirements)

Model No.VoltageMax load currentMax static liftMax flow ratePower consumption
V(dc)AML/Hw
DC40F-1230120.903.066010.8
DC40F-1240121.24.078014.4
DC40F-1850181.205.084021.6
DC40F-2450240.905.084021.6
DC40F-2460241.206.096028.8
NOTE
  • Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.

  • When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

  • The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.

  • The max flow rate means flow rate with no lifting height(according to the curve bellow)
